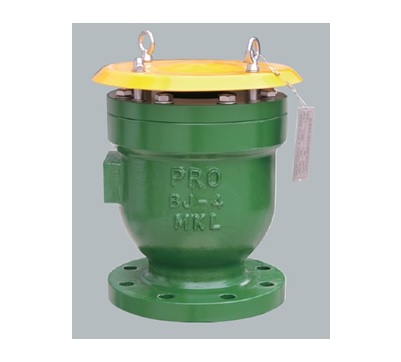

Model : KSBJ Type
Merk : Prosave
Origin : Korea
General Description :

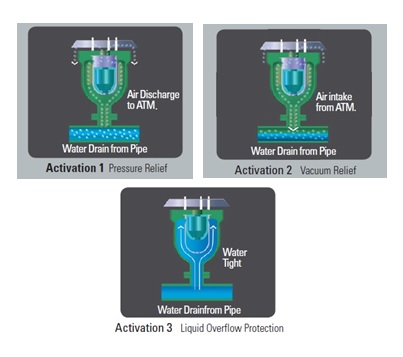

It is two critical time in the operation of a pipeline.
During filling, air that occupies the empty pipe must be evacuated ahead
of the incoming liquid in a controlled and efficient manner so that surge
and water hammer are minimized and liquid completely fills the pipe.
During draining, whether planned or unexpected, air must be admitted into
the system to replace the out flowing liquid to avoid excessive vacuum and
possible pipeline damage.
Air release valve are designed to release accumulated air pockets from the
system, while pressured pipelines. Air pockets increase energy consumption
because pumping operation will be at higher water heads to overcome
pressured air.
Air release valves are have function to protect high shock and surge pressure,
water hammer and liquid overflow from fresh or sea water pipelines.
PROSAVE's valve can provide low cast insurance to protect expensive maintenance
cost of pipelines and pump systems
Benefits :
* Pressure & Vacuum Relief Function
* Anti-Surge & Anti-Shocks
* Surge and Waterhammer Protection
* Liquid Overflow Protection
* Provides High Capacity Venting For Pipeline Protection
* Increasing Of Pump Efficiency
* Less System Energy
* Maintenance Free
