For Fresh Water & Sea Water Tanks, Ballast And Fuel Oil Tanks And
Lubricating Oil Tanks
Lubricating Oil Tanks

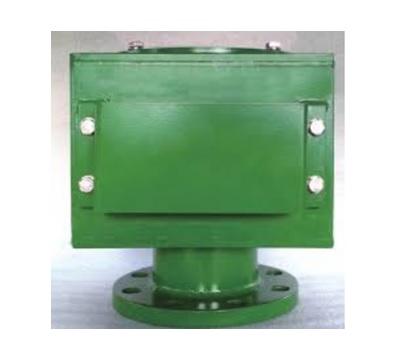

Model : AVH Type
Merk : Prosave
Origin : Korea
General Description :
General Description :
The model AVH, Air Vent Head is designed, manufactured and tested according
to the IACS UR P3 standard and all major classification society requirements,
The model AVH is an important product that air in ballast tank is passed freely,
And prevents the sinking of ship by seawater inflow.
The model AVH are made by casting and welding for greater lifetime and feature
Compact dimensions, actually the smallest overall sizes available.
The model AVH is available in a high capacity execution suitable for offshore
Installation in ballast systems.
The testing result of momentary tightness of the disc shows excellent in the Worst
condition (40° inclining).
Float disc has been devised not to occur crack and damage in repeated reciprocating
motion.
Application :
Application :
For Fresh Water & Sea Water Tanks, Ballast And Fuel Oil Tanks
And Lubricating Oil Tanks
Benefit :
* Tested according to IACS UR P3
* Easy maintenance
* Compact Simple Design
* Light Weight
* Auto Closing
* No Crack And Damage of Float
* Seawater Release Function
* Prevention Of Seawater Inflow
* Approved By All Major Calssification
