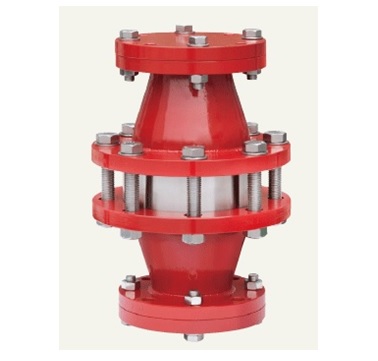

In-Line Flame Arrester
Model : FA Type
Merk : Prosave
Origin : Korea
General Description :
The flame arrester is designed to prevent flame transmission when
flammable gas/air- or vapor/air-mixtures are present.
The model FA in-line flame arrester is designed, manufactured and
tested according to API 2000 and EN 12874.
Body material of arrester is available for nodular cast iron, cast steel,
stainless steel grade 304, 316, 316L and special alloy steel for chemical
resistance.
The material of element is available for stainless steel grade 316L or
special alloy steel for chemical resistance.
The flame element is constructed with crimped ribbon metal.
Benefits :
• Meet the latest international rule requirement of API 2000 and EN 12874
• Protection against explosion and deflagration flame
• High flow capacity and minimum pressure loss
• Available bi-directional flow and flame passage
• Available vertical and horizontal installation
• Very easy maintenance for quick cleaning
• High performance chemical resistance material
