(With Gas Free Cover)

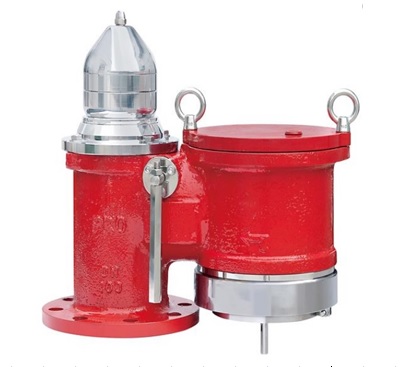

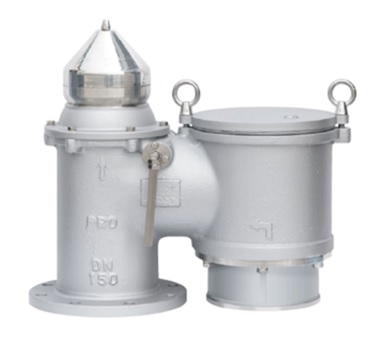

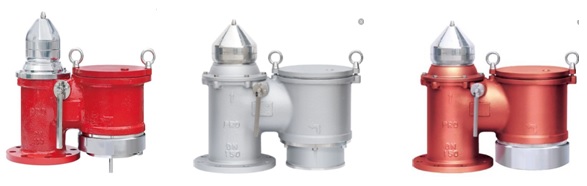

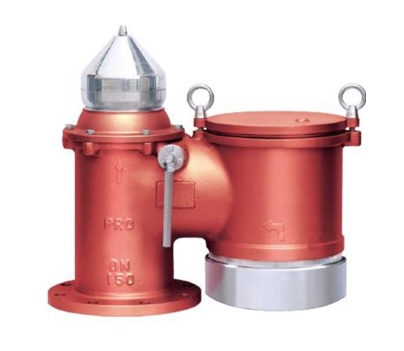

Model : SMART-HV Series
Merk : Prosave
Origin : Korea
General Description :
This valve is also designed for devices to prevent the passage of flame
into cargo tanks in tankers and to relieve excessive over pressure or under
vacuum of cargo tanks during cargo loading, discharging, ballasting and
thermal variations.
Features & Benefits :
1. Reliable operations reduces vapor losses
2. Suaitable and compact design ensures long-term maintenance free life cycle
3. Meet new IMO & MED requirements for cargo vapor flammability
- MESG 0.9 & 0.65 mm
4. Non-oscillating performance
5. Full lifting and high flow capacity
6. Variable application for usable installation vent pipe length and flow capacity range
7. No peak pressure over opening pressure
8. No need inside maintenance
9. Available outside inspection, cleaning and maintenance without disassembling
10. Adjustable outside opening and closing pressure without exhausting vapor gas
Approved for crude oil, products and IMO type?or ? chemical tankers carrying
dangerous flammable cargoes of a Maximum Experimental Safe Gap (MESG)
with 0.65 mm and 0.9 mm
