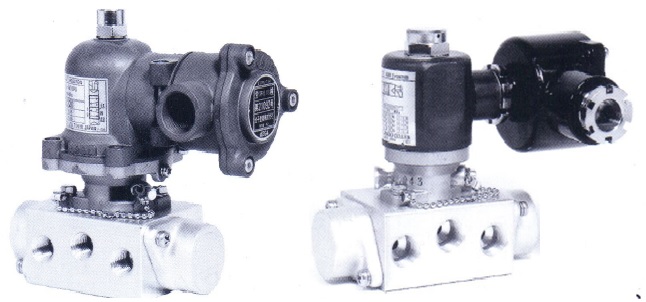

FOUR WAY SOLENOID VALVE
Origin : Japan
# Features :
+ Operate without supply lubricating oil
+ Easy interchange of coil
+ Corrosion proof treatment
+ Safety explosion-proof type
+ No spring type
+ Attached manual button
+ Can use as 3 way valve
# Standard Specification :
+ Pipe Size : Rc ¼”, Rc 3/8”
+ Fluid : Clean air
+ Fluid Temperature : - 20 Deg ~ 60 Deg C
+ Ambient Temperature : - 20 Deg ~ 60 Deg C
+ Duty Cycle : 100% Continuosly rated
+ Operating Voltage Range : + 10%, - 15%
+ Working Pressure : 0.1 ~ 0.99 MPa
+ Cv. Flow Factor : 0.87

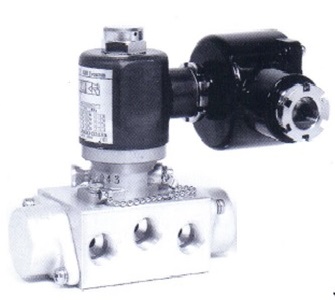

A. General-Purpose Type
- Model : M15G-8-A12PG SIZE : RC 1/4
- Model : M15G-10-A12PG SIZE : RC 3/8
- Model : M15G-8-D12PG SIZE : RC 1/4
- Model : M15G-10-D12PG SIZE : RC 3/8

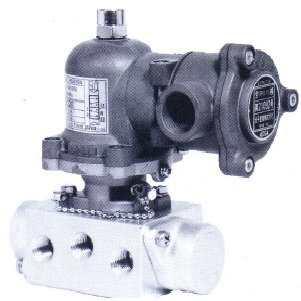

B. Explosion-Proof Type
- Model : M15G-8-AE12PU SIZE : RC 1/4
- Model : M15G-10-AE12PU SIZE : RC 3/8
- Model : M15G-8-DE12PU SIZE : RC 1/4
- Model : M15G-10-DE12PU SIZE : RC 3/8
