Dapatkan Spesifikasi Harga KANEKO THREE WAY SOLENOID VALVE MOOU SERIES Produk Terbaik dari CV. ALDANA SEJAHTERA PERALATAN INSTRUMENT, ELECTRICAL, MECHANICAL, TOOLING, MEASUREMENT ( PERALATAN UKUR)

Detail Produk

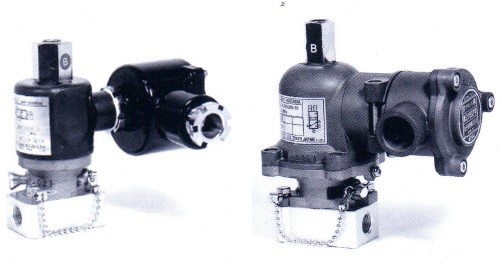

KANEKO SOLENOID VALVE MOOU SERIES

THREE WAY SOLENOID VALVE

Origin : Japan

# Features :

+ Explosion-proof terminal box turns.

+ As the explosion-proof terminal box turns 340 degrees, conduit connections are
easy to make.

+ Universal function.

+ Four modes of operation are possible, depending on the operating environment.

+ Long life of five million operations or more.

+ Compact and light.

+ Particularly explosion-proof type valves are very compact without parallel.

# Standard Specification :

+ Pipe Size : Rc 1/8", Rc 1/4", Rc 3/8”

+ Fluid : Clean air

+ Fluid Temperature : - 20 Deg ~ 60 Deg C

+ Ambient Temperature : - 20 Deg ~ 60 Deg C

+ Duty Cycle : 100% Continuosly rated

+ Operating Voltage Range : + 10%, - 15%

+ Cv. Flow Factor : 0.084 (1.6) & 0.22 (3.0)

+ Orifice Size & Working Pressure :

- Dia. 1.6 ..... 0 ~ 0.7 Mpa

- Dia. 3.0 ..... 0 ~ 0.4 Mpa

A. General-Purpose Type
- Model : MOOU-6-A12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-A12PG-01 SIZE : RC 1/8" ORIFICE : 3.0
- Model : MOOU-6-D12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-D12PG-01 SIZE : RC 1/8" ORIFICE : 1.6

- Model : MOOU-8-A12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-A12PG-01 SIZE : RC 1/4" ORIFICE : 3.0
- Model : MOOU-8-D12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-D12PG-01 SIZE : RC 1/4" ORIFICE : 1.6

- Model : MOOU-10-A12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-A12PG-01 SIZE : RC 3/8" ORIFICE : 3.0
- Model : MOOU-10-D12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-D12PG-01 SIZE : RC 3/8" ORIFICE : 1.6

B. Explosion-Proof Type

- Model : MOOU-6-AE12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-AE12PG-01 SIZE : RC 1/8" ORIFICE : 3.0
- Model : MOOU-6-DE12PG SIZE : RC 1/8" ORIFICE : 1.6
- Model : MOOU-6-DE12PG-01 SIZE : RC 1/8" ORIFICE : 1.6

- Model : MOOU-8-AE12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-AE12PG-01 SIZE : RC 1/4" ORIFICE : 3.0
- Model : MOOU-8-DE12PG SIZE : RC 1/4" ORIFICE : 1.6
- Model : MOOU-8-DE12PG-01 SIZE : RC 1/4" ORIFICE : 1.6

- Model : MOOU-10-AE12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-AE12PG-01 SIZE : RC 3/8" ORIFICE : 3.0
- Model : MOOU-10-DE12PG SIZE : RC 3/8" ORIFICE : 1.6
- Model : MOOU-10-DE12PG-01 SIZE : RC 3/8" ORIFICE : 1.6
