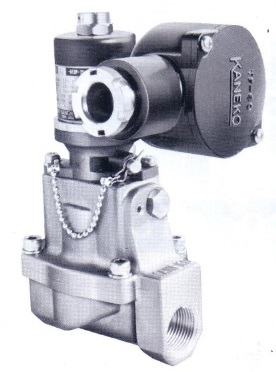

TWO WAY SOLENOID VALVE
Origin : Japan
# Features :
+ Mass flow rate can be obtained even in a small size. (Cv value:Up to 12.6)
+ Mounting orientation freedom. (360 ?)
# Precautions :
+ For pilot-operated, should be able to ensure minimum operating differential
pressure 0.05MPa or more times.
# Standard Specification :
+ Size : 15 (1/2”), 20 (3/4’), 25 (1”)
+ Body Material : C3771 (brass forging)
+ Fluid : Such as water, oil, air, inert gas
+ Working Pressure : Gas 0.05 ~ 0.9 Mpa ; Liquid 0.05 ~ 1.6 MPa
+ Differential Pressure Actuated : 0.05 MPa or more full-time
+ Fluid Temperature : - 20 Deg C ~ 60 Deg C
+ Ambient Temperature : - 20 Deg C ~ 60 Deg C (That the fluid does not freeze but)
+ Electrical Ratings : Continuity
+ The Allowable Voltage Fluctuation Rate : +10%, - 15%

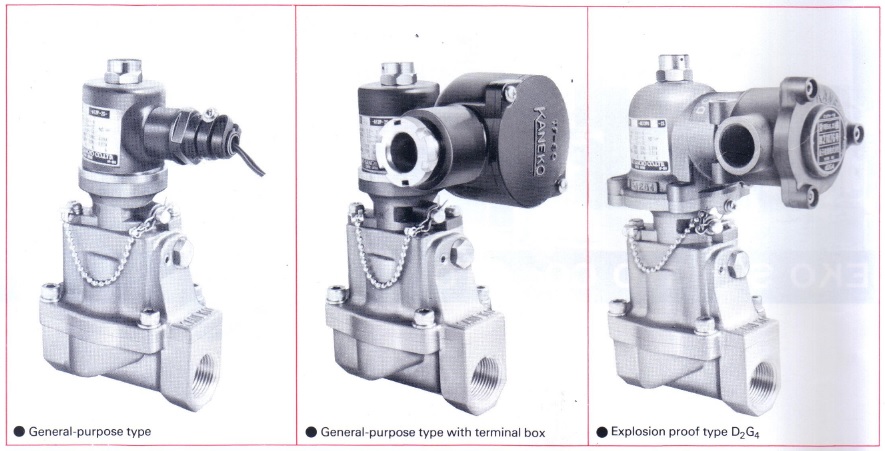

A. General-Purpose Type
- Model : M20C-15-A12P-S
- Model : M20C-15-D12P-S
- Model : M20C-20-A12P-S
- Model : M20C-20-D12P-S
- Model : M20C-25-A12P-S
- Model : M20C-20-D12P-S
B. General-Purpose Type with Terminal Box
- Model : M20C-15-A12P-S-T
- Model : M20C-15-D12P-S-T
- Model : M20C-20-A12P-S-T
- Model : M20C-20-D12P-S-T
- Model : M20C-25-A12P-S-T
- Model : M20C-20-D12P-S-T
C. Explosion-Proof Type
- Model : M20C-15-AE12PU-S
- Model : M20C-15-DE12PU-S
- Model : M20C-20-AE12PU-S
- Model : M20C-20-DE12PU-S
- Model : M20C-25-AE12PU-S
- Model : M20C-20-DE12PU-S
